Customized Hall Effect Current Transducer High Performance For Relay Protection

Name: Customized Hall Effect Current Transducer High Performance For Relay Protection
Brand: Shinhom
Price: 1 USD

Brand Name : Shinhom

Model Number : HKC-BS5/BR5

Place of Origin : China

Certification : RoHS

MOQ : 5000PCS

Packaging Details : Carton

Delivery Time : 4~8 Weeks

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Price : Negotiation

Supply voltage : 5V (±5%) / 12V (±5%)

Rated Input : 0A~600A

Rated Output : 0.625V ±1%

Output : Analog Sensor

Inner window : 10.5mm*20.5mm

Customized : yes

Contact Now

HKC-BS5/BR5 Series High Accuracy Closed Loop Hall Effect Current Sensor for Relay Protection

HKC-BS5/BR5 series dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications:

Power supplies for welding applications
Battery supplied applications
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Switched mode power supplies (SMPS)
Uninterrupted power supplies (UPS)

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output voltage are available.

ELECTRICAL DATA:

	HKC50BS5/BR5 HKC100BS5/BR5 HKC200BS5/BR5 HKC300BS5/BR5 HKC400BS5/BR5 HKC500BS5/BR HKC600BS5/BR5
Rated input current	50	100	200	300	400	500	600	A
Test current range	100	200	400	600	800	900	900	A
Rated output voltage	0.625±1%							V
Zero residual voltage	2.5±0.5%							V
Supply voltage	+5±5%/+12±5%							V
Offset voltage	≤±25							mV
Magnetic offset voltage	≤±20		≤±15					mV
Offset voltage Drift	≤±2.0		≤±1					mV/℃
Linearity	≤±1							%FS
Response time	≤3							μS
Insulation voltage	50HZ,1min,2.5							KV
Operating Temperature	-40～+85							℃
Storage Temperature	-40～+105							℃

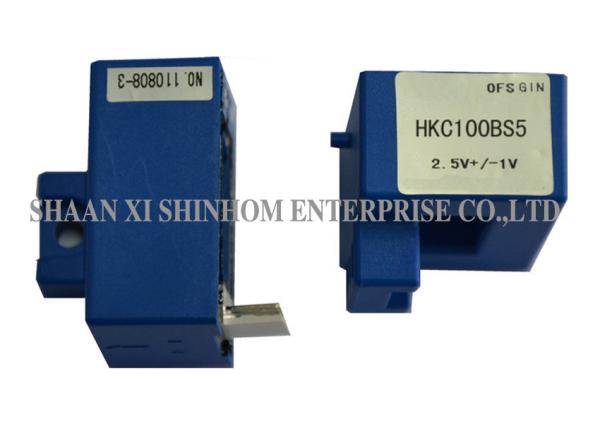

Customized Hall Effect Current Transducer High Performance For Relay Protection

Notes: Product specifications can be customized
