Name: High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer
Brand: shinhom
Price: 1 USD

Brand Name : shinhom

Model Number : PEE25

Certification : RoHs

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/month

Delivery Time : 4-8 weeks

Packaging Details : Carton

Frequency : High frequency

Hi-Pot : 4.0KV

Potting : Epoxy

Potting Color : Black/Gray

Pad : 33*24mm

Installation : pcb

Contact Now

High frequency Encapsulated pcb transformer,Epoxy encapsulated transformers

Electrical specification:

Inductance(1-2): 68uH±15%@1KHz,0.25V
Inductance(3-4): 17uH±15%@1KHz,0.25V
Inductance(6-5): 1.25H±15%@1KHz,0.25V
DCR(1-2): 37mΩ±30%@20℃
DCR(3-4): 55mΩ±30%@20℃
DCR(6-5): 307Ω±30%@20℃
Hi-Pot: 4.0KVac,1mA,2S Pin2,3 to Pin6

Characteristics:

acuum epoxy resin encapsulated,100℃/6hours High temperature aging,long woking life 20 years, and with high delectric strength.
Reasonable structure,convenient installation,low noise,strong earthquake,airtight waterproof,moistureproof.
Work temperature:-30℃~+70℃
Insulation grade:B grade(130℃)
UL94-V0
Dielectric strength:4000V AC/min 5mA

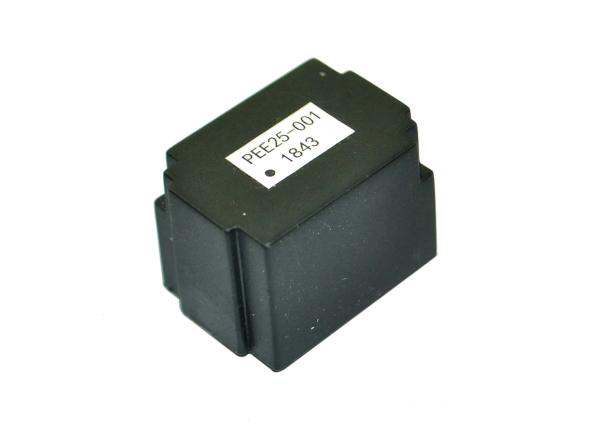

High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer

Note: Product specifications can be customized.
